Set up AWS IAM for CloudWatch Integration

Developers can monitor their AWS resources by integrating data from Amazon CloudWatch into their test and view it in real-time, while the BlazeMeter test is running. First set up AWS IAM and then connect it to BlazeMeter.

Access Amazon Access Key ID & Secret Access Key

Perform the following steps in order to access the Amazon access key id and secret access key.

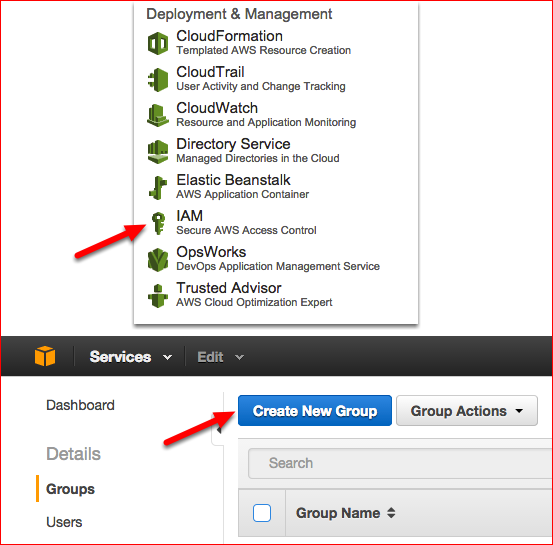

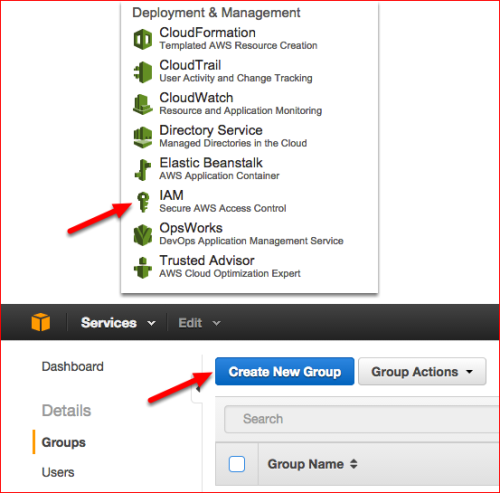

  1. Go to IAM Dashboard Create a new group (in IAM).

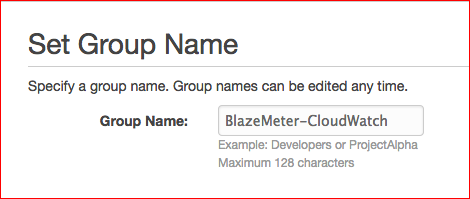

  2. Name a group, then click on 'Next Step'.

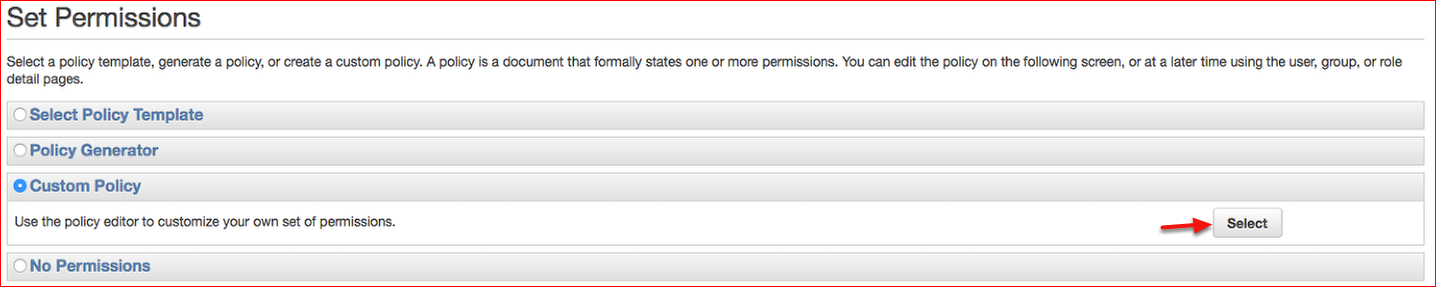

  3. Choose Custom Policy and click Select

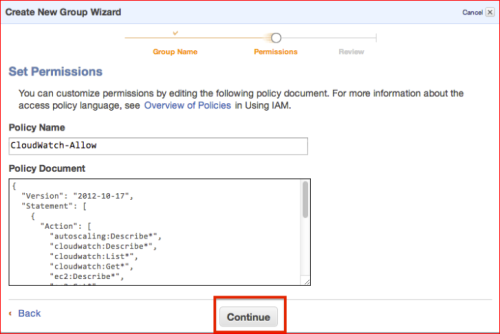

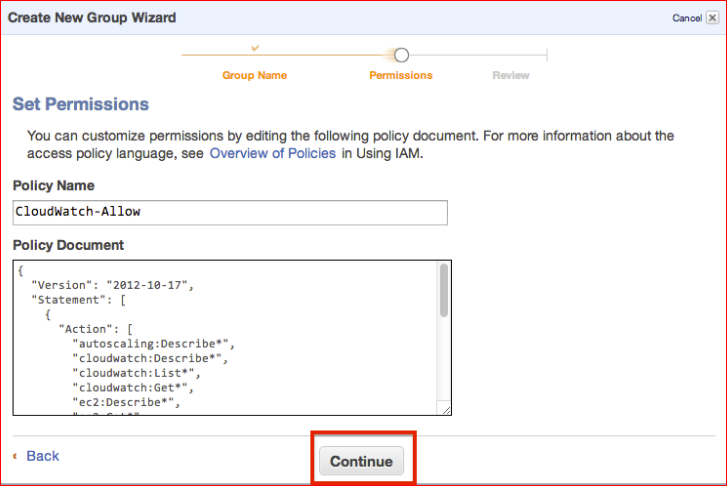

  4. Fill in the Policy Name and Document using the below parameters.

    Copy
     {  "Version": "2012-10-17",

         "Statement": [
              {
                 "Action": [
             "autoscaling:Describe*",
                    "cloudwatch:Describe*",
                   "cloudwatch:List*",
                "cloudwatch:Get*",
            "ec2:Describe*",
            "ec2:Get*",
            "ec2:ReportInstanceStatus",
            "elasticache:DescribeCacheClusters",
            "elasticloadbalancing:Describe*",
            "sqs:GetQueueAttributes",
            "sqs:ListQueues",
            "rds:DescribeDBInstances",
            "SNS:ListTopics"
             ],
                 "Effect": "Allow",
                          "Resource": "*"
             }
         ]
    }

  5. For more information regarding the policy setup and controlling User Access to your account, see Identity and access management for Amazon CloudWatch (docs.aws.amazon.com).

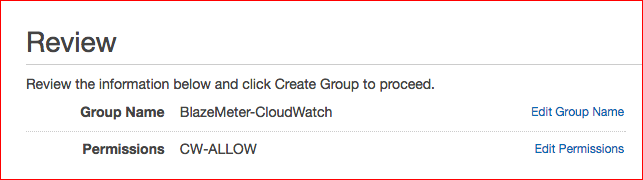

  6. Click Create Group at the bottom of the page. (This specific policy set up gives the aforementioned, newly named group read-only access to all relevant AWS services currently supported by BlazeMeter's integration. Now that the new policy is set save the group creation.)

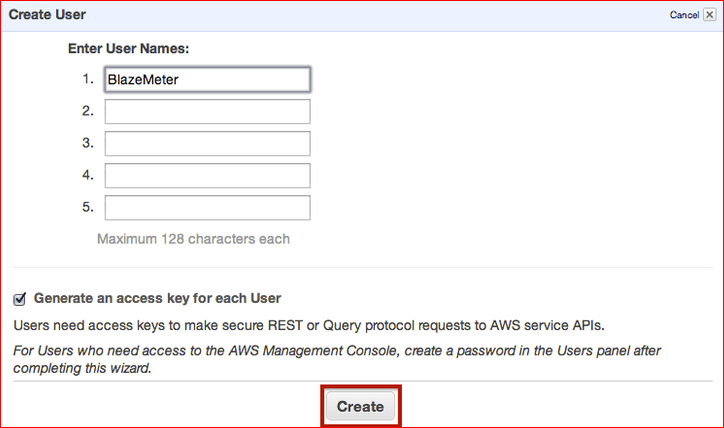

  7. Now go to Users and click Create a new user. Create a new user (that is, sign up) or log in with your user (these are the credentials we’ll be providing) to the BlazeMeter integration with AWS CloudWatch.

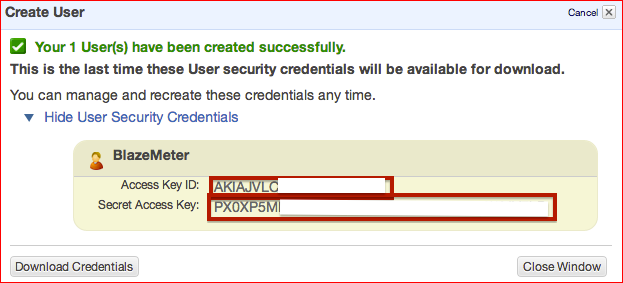

  8. Write down your Access Key ID and Secret Access Key.

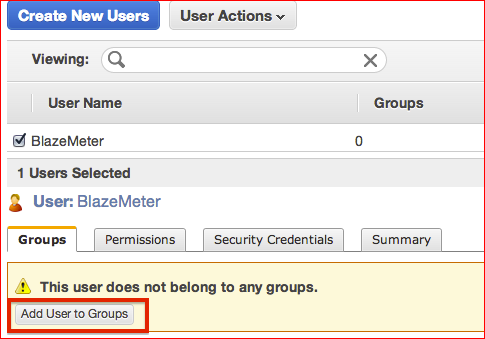

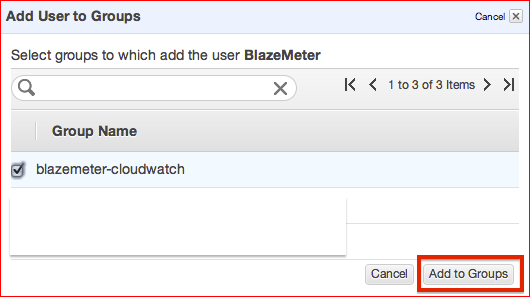

  9. Now let's assign the newly created user to a group we created a few steps earlier. Choose a user and click add User to Groups.

  10. Select the right group.

Now you have a user with access to CloudWatch metrics. Once the user is created and we've logged in, make sure to SAVE the Access Key ID and Secret Access Key in BlazeMeter.
Proceed to Setting up a test on BlazeMeter integrated with CloudWatch.
